CLAY: A Controllable Large-scale Generative Model for Creating High-quality 3D Assets

CLAY: A Controllable Large-scale Generative Model for Creating High-quality 3D Assets

Paper: https://arxiv.org/abs/2406.13897 Project Page: https://sites.google.com/view/clay-3dlm Github: https://github.com/CLAY-3D/OpenCLAY Service: https://hyperhuman.deemos.com/rodin (Rodin)

My thoughts on the paper

• Geometry Generative Model
• Establishes a new baseline for geometry generation.
• Improves performance with a scalable diffusion-transformer architecture.
• Selects 527,000 high-quality 3D assets from Objaverse and ShapeNet, then remeshes and labels them.
• Tests various model sizes, with mesh topology clearly better than previous methods. 👍

• Material Diffusion Model
• Selects 40,000 good PBR assets from Objaverse.
• Modifies MVDream, a multi-view diffusion model, to train four-view material diffusion.
• Adds normal ControlNet and LoRA, but does not explain this part in detail...
• This seems to preserve texture-to-mesh alignment well, but needs verification.
• Generates diffuse, roughness, and metallic maps using TEXTure's gradient-based texture-projection optimization.
• When I tried the service, color was cleanly separated into the diffuse map. 👍
• Why did they not call it albedo?
• Fills occluded regions using Text2Tex's automatic viewpoint selection.
• The service shows almost no occlusion gaps. Is this really how they address them? Needs verification.

• Personal impressions
• It seems worthy of a SIGGRAPH Best Paper award: novelty, performance, and a good system all together.
• I liked the two-stage concept of geometry generation plus material generation. It is surprising to finally see plausible PBR results.
• But is 3D generation ultimately becoming a contest between scalable transformer-based models and large datasets? If so, I am personally wondering how to approach future research.
• Will it come down to capital and data, as with LLMs?
• Or will a new approach prevail because 3D and graphics lack sufficient real-world training data?
• I will need to keep watching the direction of the field.

1. Introduction

• There are two broad strategies for 3D generation.
• [A] Extending 2D generative models into 3D, for example through SDS
• Advantage: Diverse generation results.
• Disadvantage: Limited understanding of 3D, making high geometric fidelity difficult to maintain.
• [B] Learning from 3D datasets
• Advantage: Better understanding and preservation of geometric fidelity.
• Disadvantage: Large datasets are difficult to obtain, which is closely related to the problem 3D generation itself seeks to solve.

• This paper combines [A], 2D-based generation, and [B], 3D-based generation, in a pretrain-then-adapt paradigm.
• Geometry generation
• 3D native geometry generator(1.5B)
• Components: 3DShape2VecSet, a VAE, and a diffusion transformer (DiT).
• Uses a new 3D preprocessing pipeline: remeshing and GPT-4V labeling.
• Material generation
• Generates four views with a multi-view material diffusion model, then projects them.
• Trained on high-quality PBR textures(diffuse, roughness, and metallic) from Objaverse


3. Large-Scale 3D Generative Model

• Challenges in developing a 3D generative model
• How should a 3D model be represented?
• Type-1. geometry with per-vertex color
• Type-2. geometry with texture map
• Should geometry be extracted from 3D appearance representations such as NeRF or Gaussian splatting, or generated directly?

• CLAY simply separates geometry generation from texture generation: Type 2.
• This means not using 2D generation to create 3D geometry.
• Experiments show that scaling the 3D geometry model and its dataset can outperform earlier 2D-based models in both diversity and quality.

• Simply put, CLAY is a large 3D generative model with 1.5 billion parameters.
• Architecture-wise
• CLAY extends the generative model of 3DShape2VecSet with a new multi-resolution VAE.
• This makes geometry encoding and decoding much more efficient.
• It also adds an improved diffusion transformer for probabilistic geometry generation.
• Dataset-wise
• Develops a remeshing pipeline.
• Develops a GPT-4V annotation schema to standardize and unify existing 3D datasets.
• Different formats and inconsistent data had previously limited their use.

3.1. Representation and Model Architecture

• The approach to 3D generation
• Like 2D generative models, it focuses on learning to denoise data in a compressed latent space.
• Effectively reduces the complexity and computational cost of 3D space.
• Uses 3DShape2VecSet's representation and architecture as a basis, adapted for scaling up.

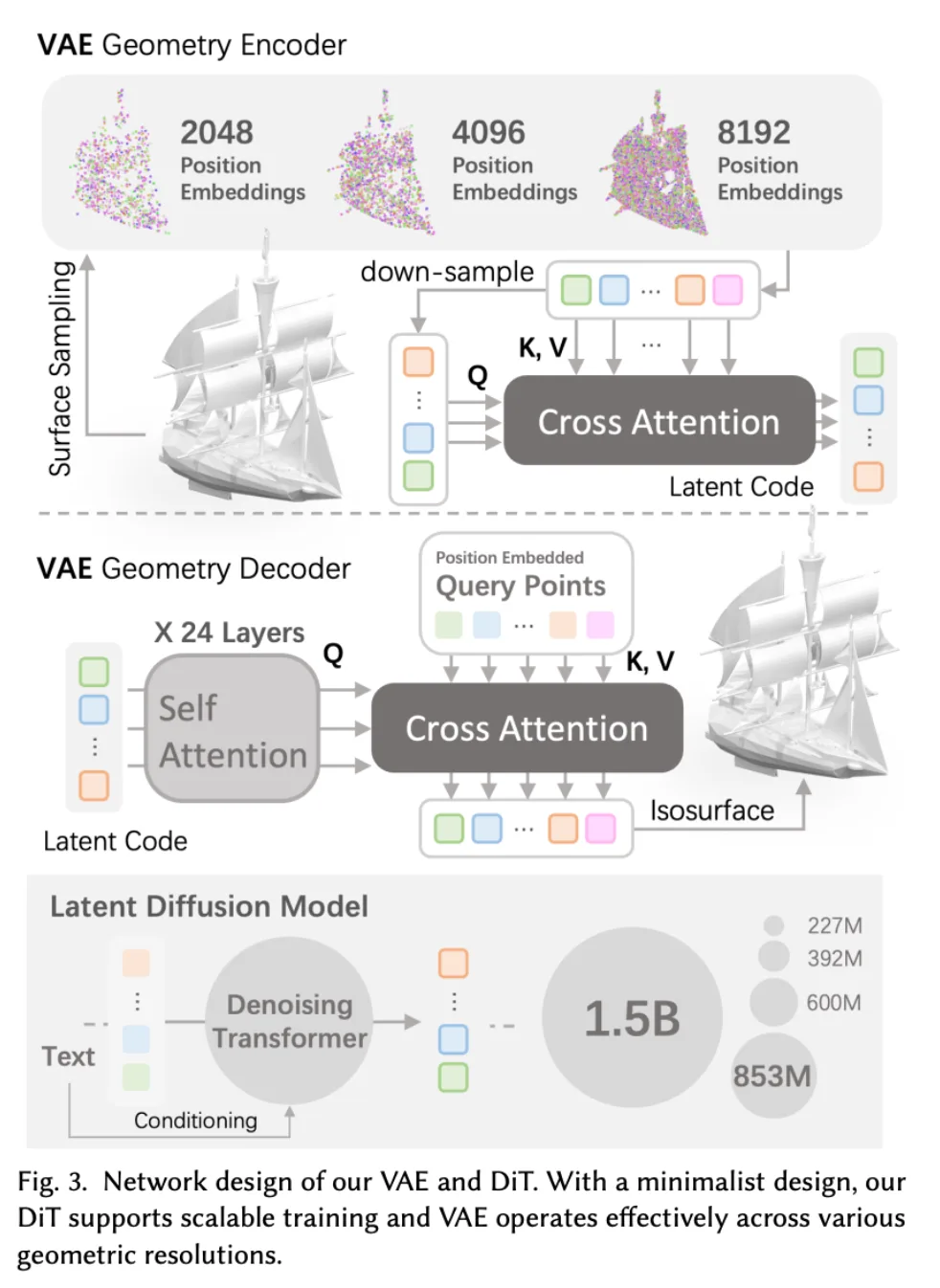

• 1. Encode 3D geometry into latent space
• Sample a point cloud $X$ from the mesh surface $M$.
• Encode the point cloud $X$ into a latent code $Z$ with a dynamic shape of $L$ × 64.
• The encoder is a transformer-based VAE.
• 2. Denoise $Z$ with DiT
• noise at step t
• 3. Decode into a neural field through the VAE decoder
• Isosurface
• Multi-resolution VAE
• See the paper.
• Model scalability is important, making the multi-resolution VAE's support for dynamic shapes essential.
• Coarse-to-fine DiT
• See the paper for experiments with various model sizes.
• This progressive scaling method ensures robust and efficient training of our DiT
• Training details are provided.
• Scaling-up Scheme
• See the paper.
• Scaling-up CLAY requires enhancing both the VAE and DiT architectures with pre-normalization and GeLU activation, to facilitate faster computation of attention mechanism.

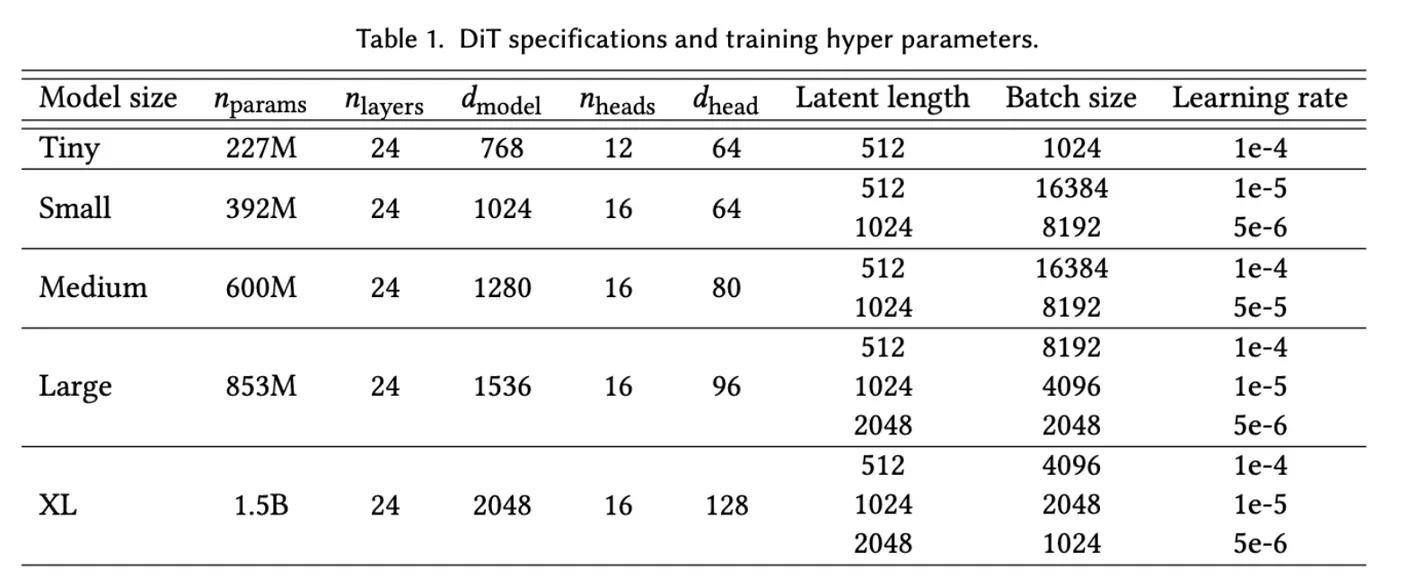

• Our largest model, the XL, was trained on a cluster of 256 NVidia A800 GPUs, for approximately 15 days, with progressive training
• Following the insights in Gesmundo and Maile [2023] of Head addition, Heads expansion and Hidden dimension expansion, we progressively scale up the DiT during training. This approach offers benefits such as enhanced time efficiency, improved knowledge retention, and a reduced risk of the model trapped in the local optima
• That is what the paper reports.


3.2. Data Standardization for Pretraining

• The effectiveness and robustness of large-scale 3D generative models depend on dataset quality and scale. Unlike text or images, open 3D datasets are scarce.

• Obtaining large quantities of high-quality 3D data requires addressing non-watertight meshes, inconsistent orientations, and inaccurate annotations.

• CLAY's solution is a remeshing method combined with GPT-4V annotation.

• Standardization
• Filtering unsuitable data
• Unsuitable data includes complex scenes and fragmented scans.
• Filtering yields 527,000 assets from ShapeNet and Objaverse.
• Geometry Unification
• Non-watertight, or open, meshes remain even after filtering.
• The authors therefore experiment with remeshing using Manifold, mesh-to-sdf, and DOGN—the Dual Octree Graph Network.
• Remeshing requires the following strategies:
• (1) Geometric preservation: Maintain important geometric features with minimal alteration.
• (2) Volume preservation: Ensure the integrity of all structural components.
• (3) Adaptability to non-watertight meshes.
• Inspired by DOGN, they adopt an unsigned distance field (UDF) representation.
• An additional issue occurs when extracting an isosurface through Marching Cubes from a mesh with holes: only thin surfaces are extracted.
• we employ a grid-based visibility computation before isosurface extraction S
• Geometry Annotation
• As Stable Diffusion demonstrates, prompts are important.
• The authors develop their own prompt tags and generate detailed annotations using GPT-4V.
• This improves the model's ability to interpret and generate complex 3D geometry with fine detail and diverse styles.

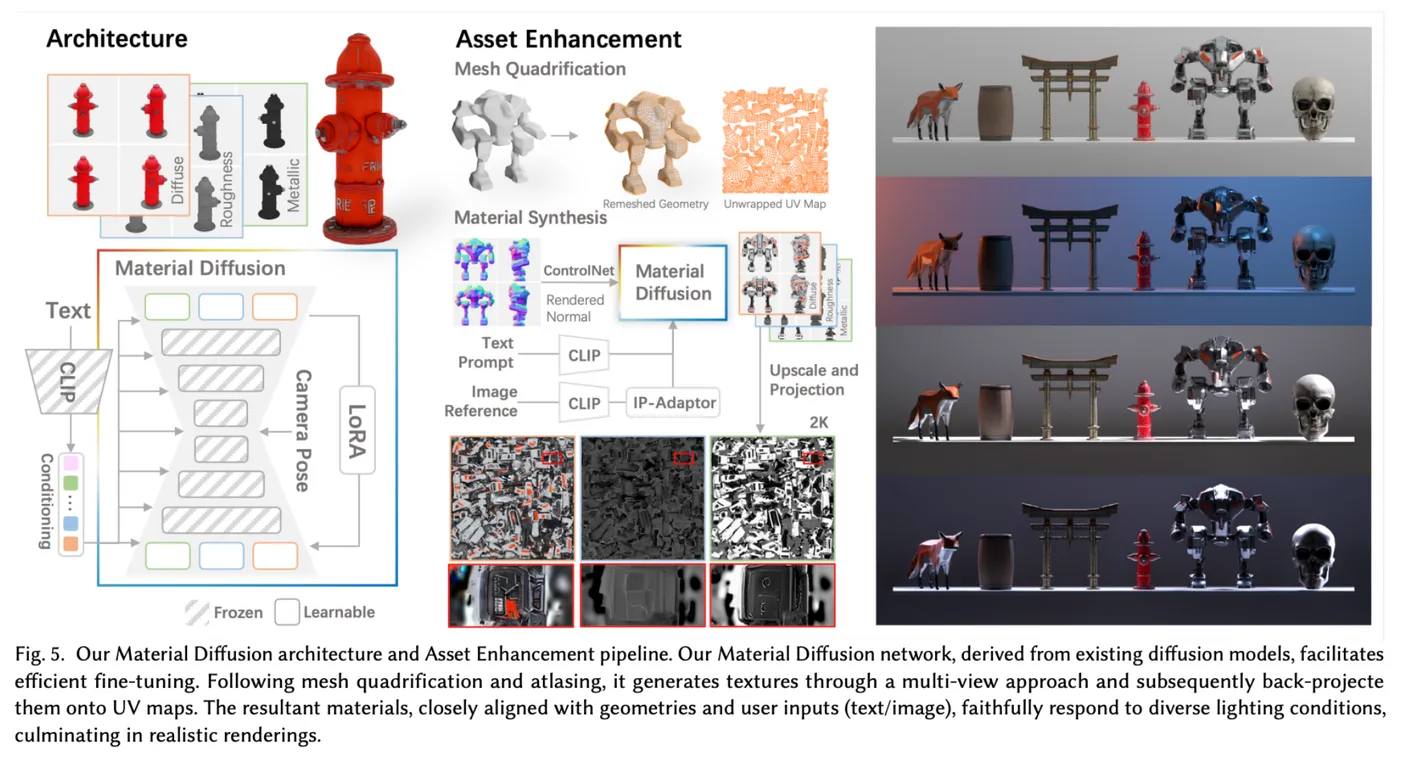

4. Asset Enhancement

• A two-stage method makes results directly usable in a CG pipeline.

• post-generation geometry optimization + material synthesis
• Geometry optimization refines the mesh.
• Material synthesis creates realistic textures.

• Mesh Quadrification and Atlasing
• CLAY's geometry extracted through Marching Cubes consists of uneven triangles.
• Blender converts triangular faces into quadrilateral faces.
• Quadrification is important for obtaining the final mesh.

• Material Synthesis



• PBR materials consist of diffuse, metallic, and roughness maps.
• Personally, unlike CLAY, I think two maps—albedo and ORM (occlusion, roughness, metallic)—might work, if possible...
• Earlier PBR generation methods handle only a small subset of these materials.
• RichDreamer generates only diffuse maps, without roughness or metallic maps.
• And so on.
• Carefully selects 40,000 objects from Objaverse.
• Unfortunately, there is no detailed explanation of how they selected them or which metadata they used.
• These objects have high-quality PBR materials.
• Uses this dataset to develop multi-view material diffusion.
• Much faster than previous methods.
• Maps results into UV space similarly to TEXTure—through UV optimization?
• Modifies MVDream to develop four-view material diffusion.
• This accommodates additional channels and modalities.
• Modifies the U-Net, inspired by HyperHuman's facial texture generator.
• See my DreamFace review!
• Trains on orthogonal views and adds LoRA fine-tuning.
• Uses normal ControlNet, which seems important for recognizing geometric detail.
• Besides preserving geometric accuracy, this also supports image inputs through mechanisms such as IP-Adapter.
• After generation with four-view material diffusion:
• Inpaints using adaptive view selection, as in Text2Tex.
• It does not inpaint in UV space. Hmm...
• Applies super-resolution to upscale to 2K.
• Uses Real-ESRGAN and MultiDiffusion techniques.
• A question: How did they achieve mesh alignment?

5. Model Adaptation

• Explains how various controls are injected.

• Pass

6. Result

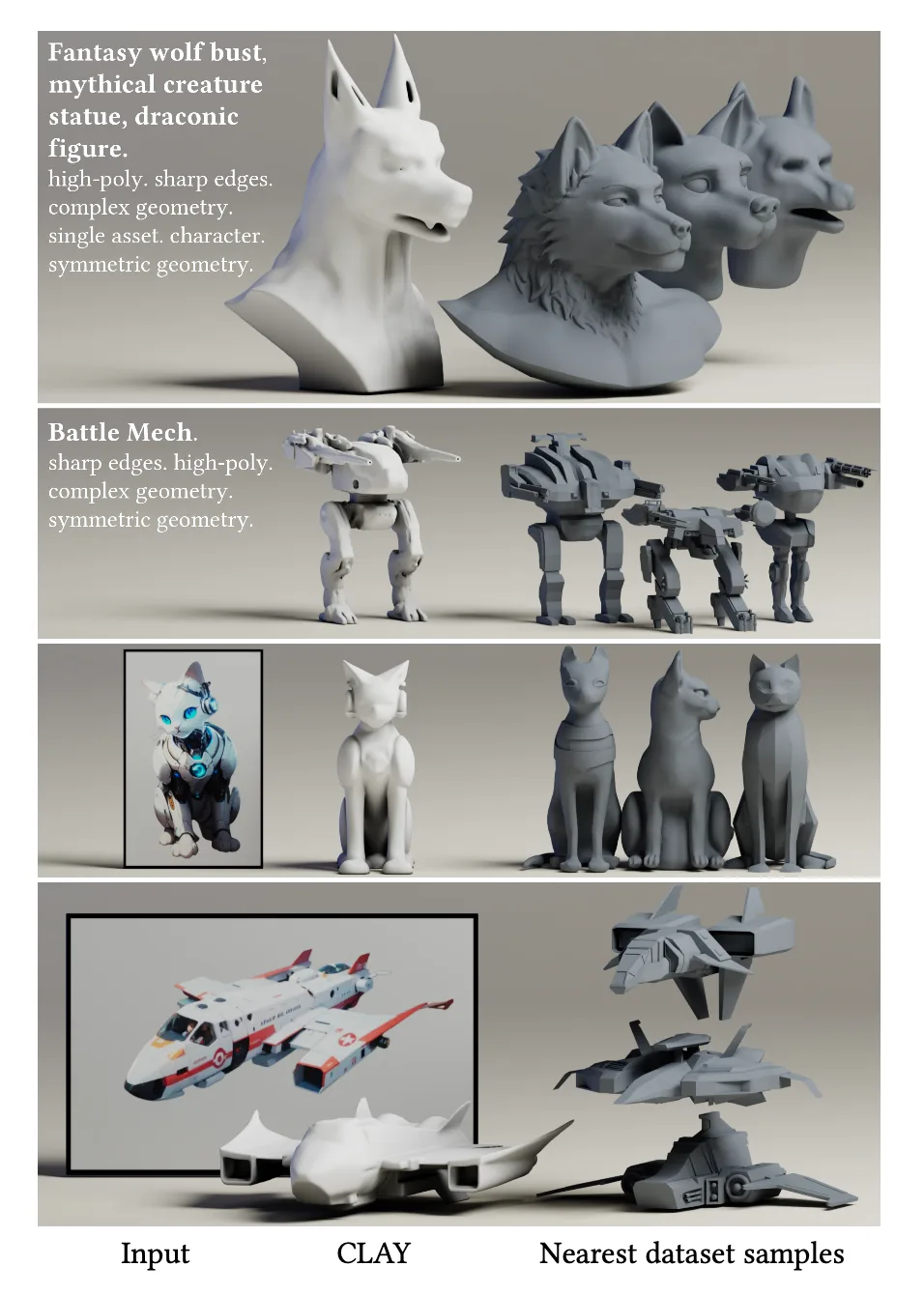

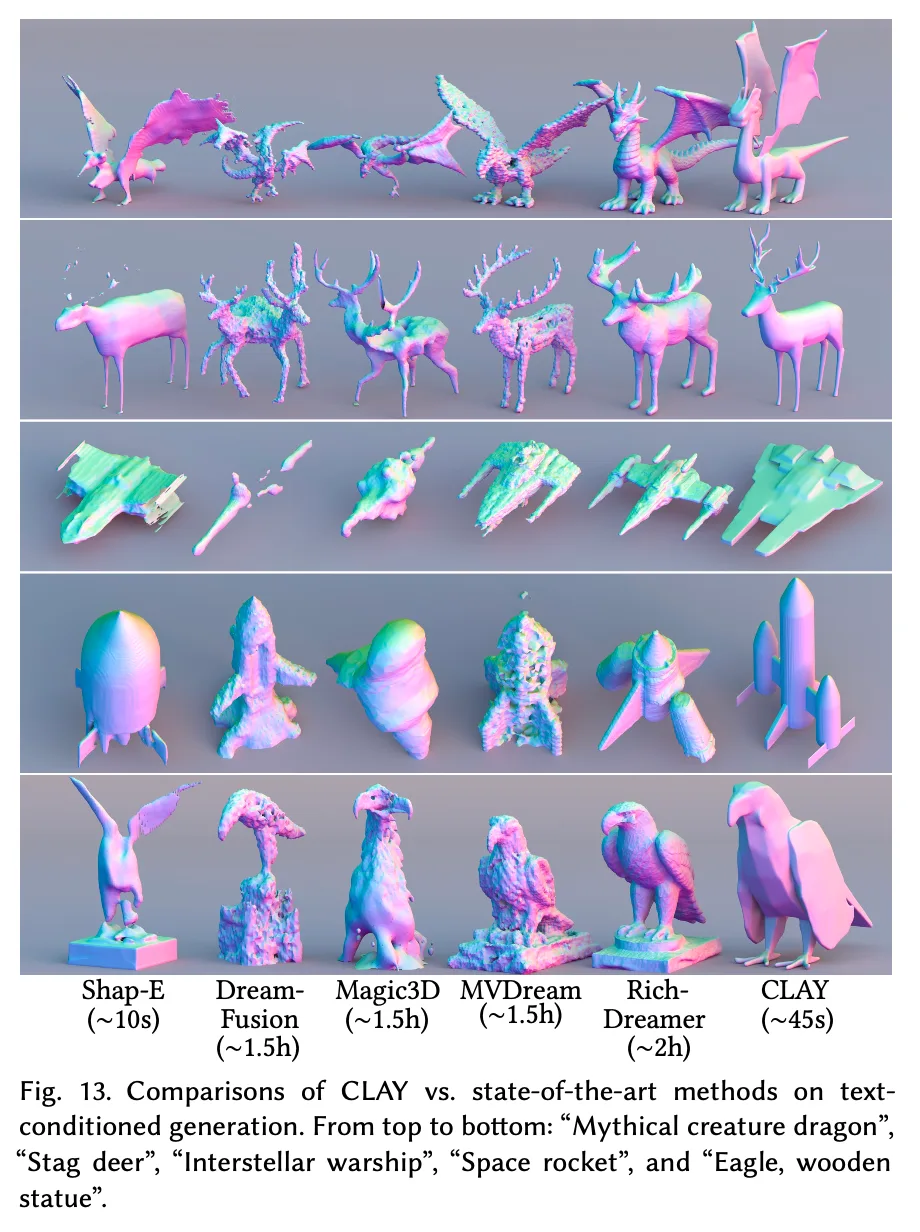

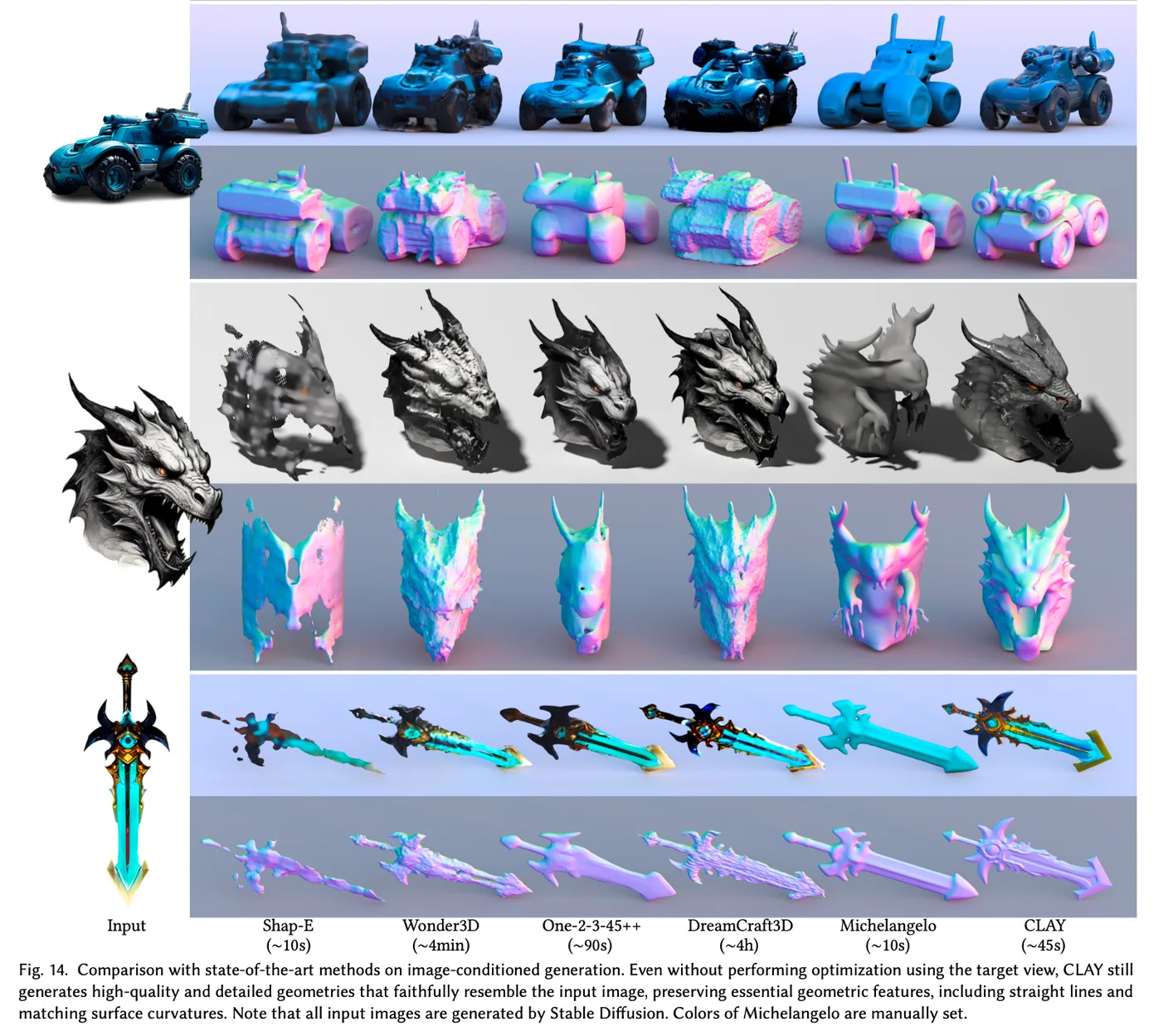

• Essentially, the results say it is the best.
